Speaker-view-sync Example

Description

• This is a sample plugin to send a message to/from the speaker view.
• Although the plugin itself is meaningless, you can extend this plugin to implement a plugin that synchronizes data between the main window and the speaker view.
  • e.g. laser pointer like powerpoint
  • This plugin just sends “test” from a window to another.

Usage

1. Add this plugin to the front matter of a .qmd file or _quarto.yaml, as shown below.

   revealjs-plugins:
     - speaker-view-sync

2. Open the html rendered and the speaker view by pressing “S”

3. Press “Ctrl” on a window

4. The message will be displayed on a web browser console.

   • press “F12” to open it.

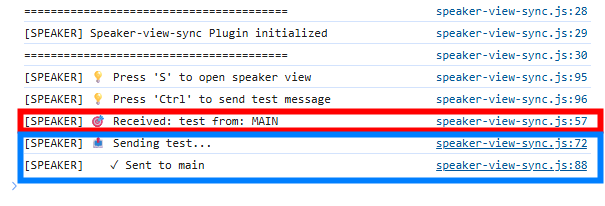

On SPEAKER

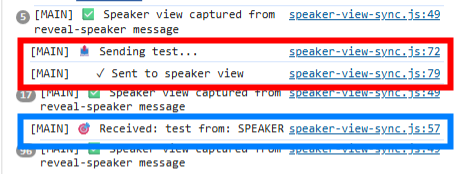

On MAIN

How to Change the Message to Send and Receive

You can modify the code here to change what data is sent/received and how they are done.

// Send a message by pressing the Ctrl key
document.addEventListener('keydown', (event) => {
  if (event.key === 'Control') {
    // Write your message to send here.
    const message = {
      namespace: 'reveal-sync',
      type: 'test',
      from: windowType,
      timestamp: Date.now()
    };

// Process a received message on reveal-sync
if (data && data.namespace === 'reveal-sync') {
  // Process your data received here
  // ...
  if (data.type == 'keepalive') {
    if (currentSlideWindow !== event.source) {
      currentSlideWindow = event.source;
    }
  } else {
    console.log(`[${windowType}] 🎯 Received:`, data.type, 'from:', data.from);
  }
}
